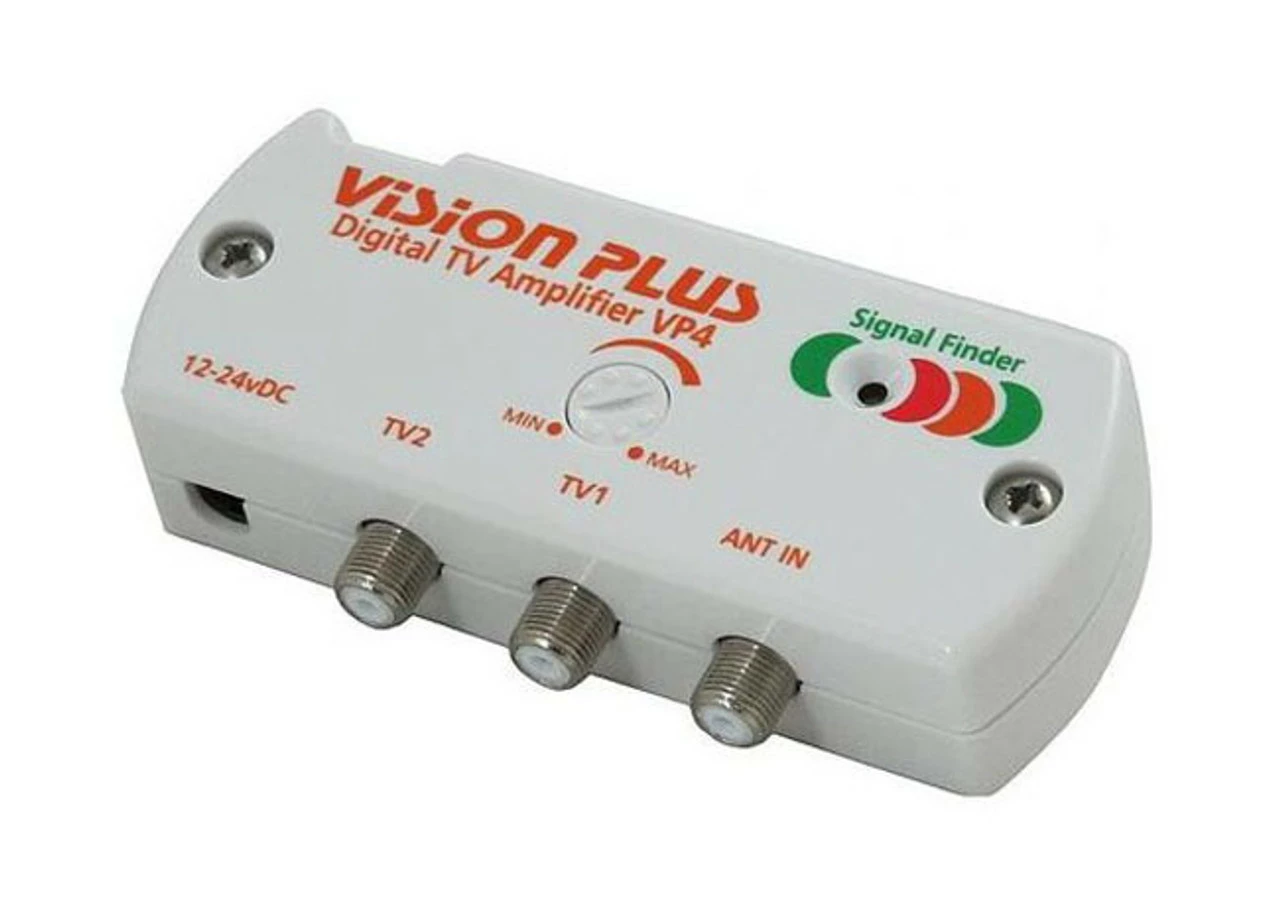

Vision Plus VP 4 Digital TV Amplifier with Signal Finder

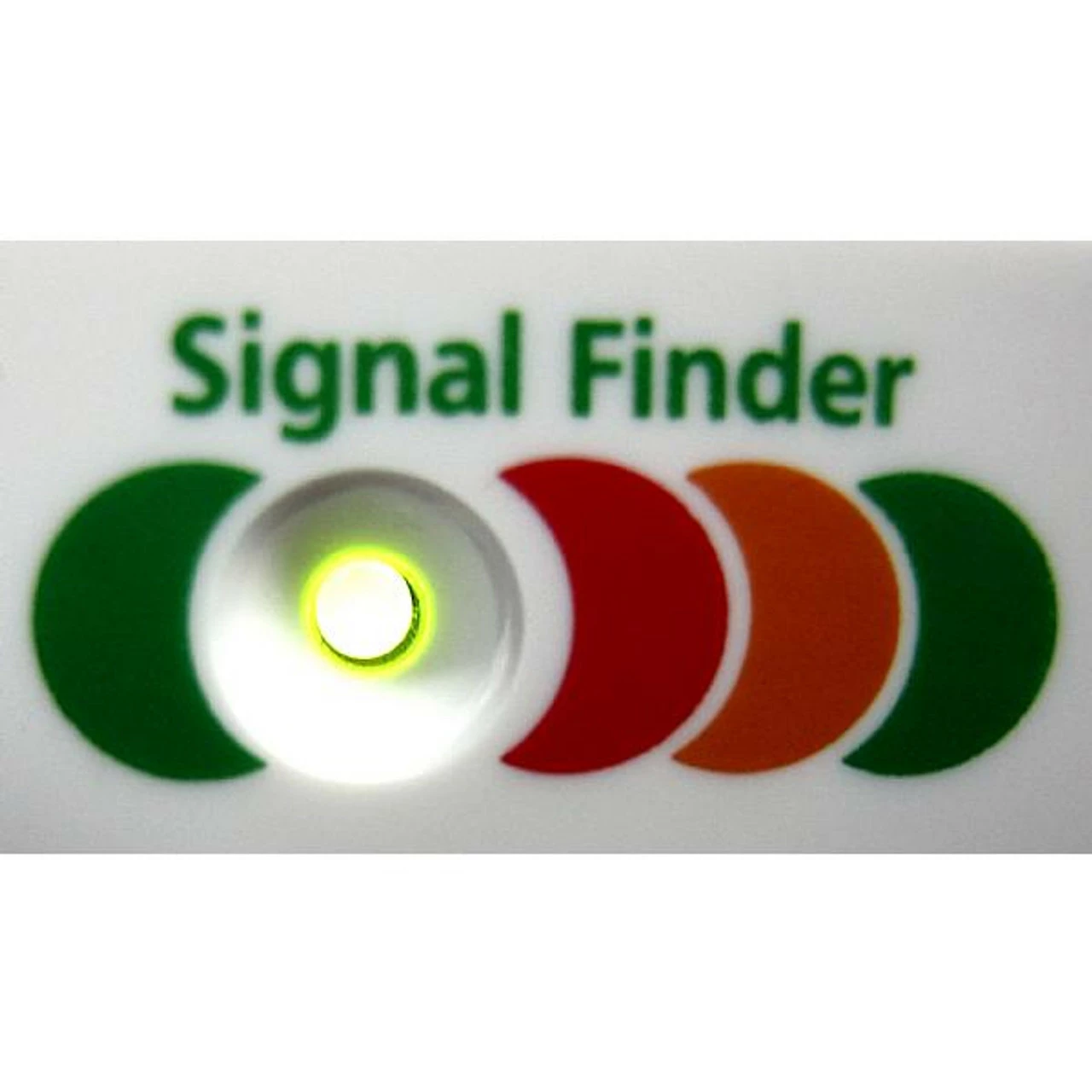

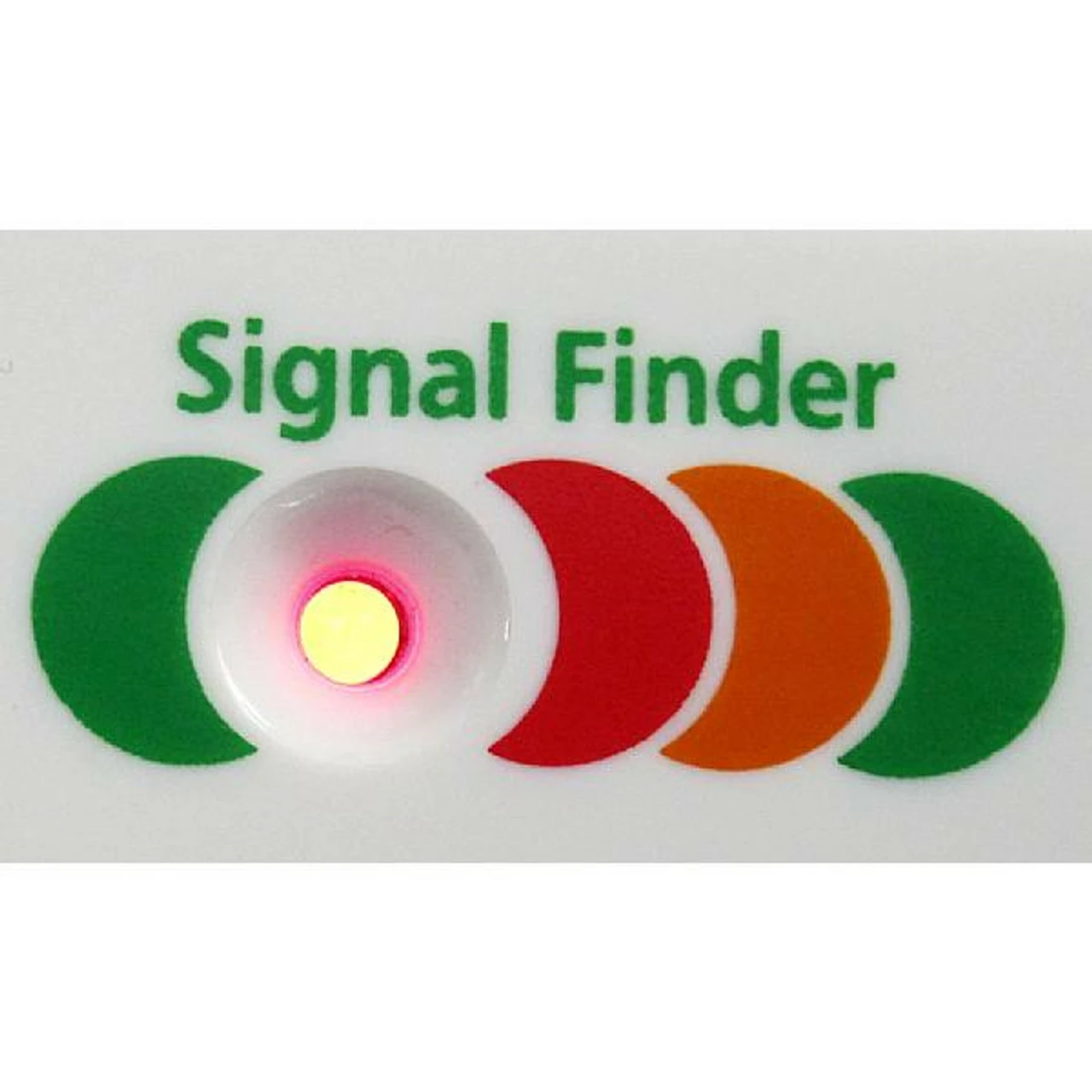

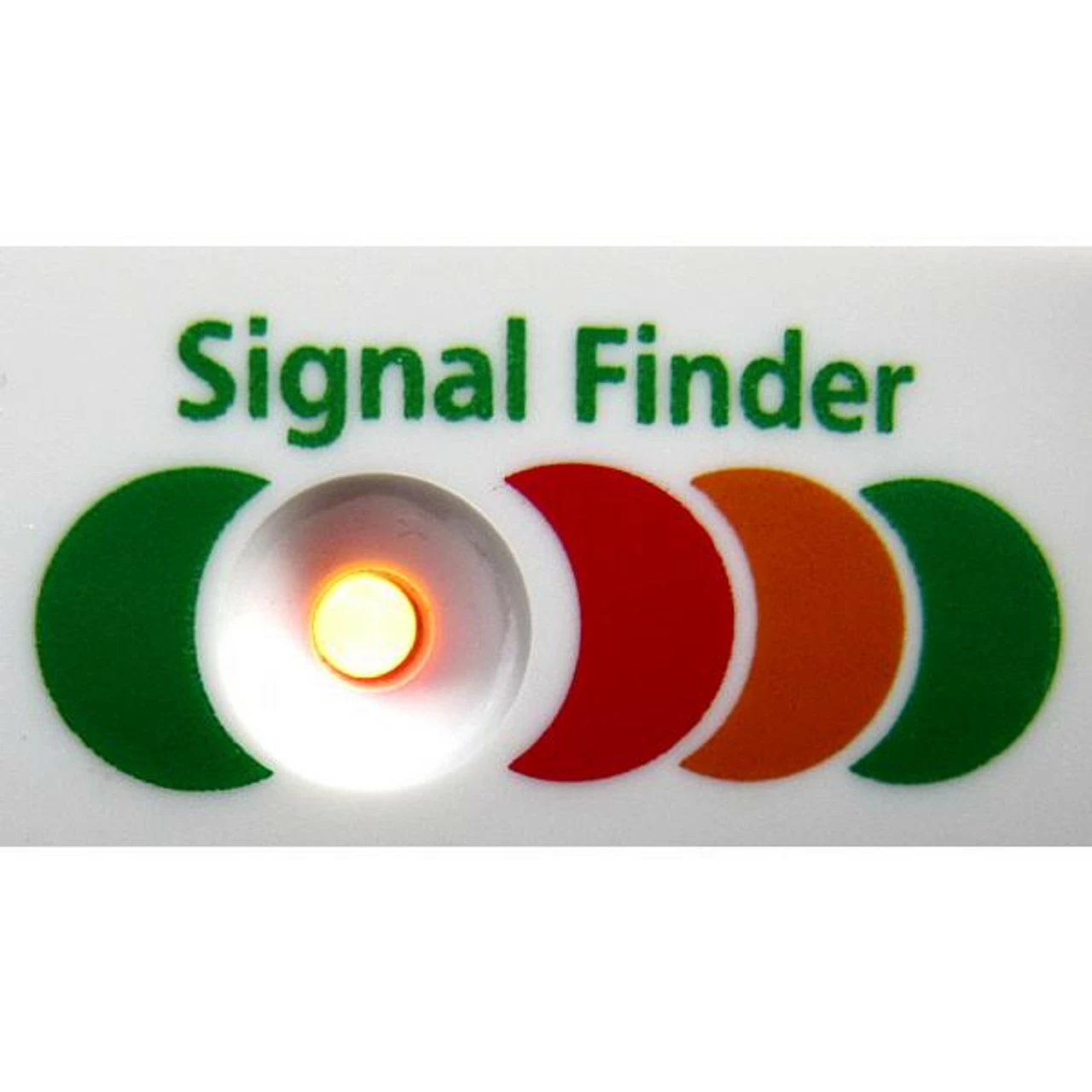

Designed to be used with Vision Plus STATUS antennas (with orange logos that don’t have pullout telescopics), the Vision Plus VP4 Digital Amplifier with Signal Finder is fully wideband for television transmissions and incorporates a dedicated signal finder to locate your nearest and most powerful TV signal transmitters.

With high gain and low noise capabilities ensuring improved performance even in areas prone to poor reception, the Vision Plus VP4 Digital TV Amplifier with Signal Finder can also be used with a range of antennas that only provide a TV Output (such as Image 410, Image 420, Image 440, Image 610 and Image 620).

Vision Plus VP4 Digital TV Amplifier with Signal Finder Specifications

• On/Off switch
• Variable gain control
• 2 TV outputs
• Frequency Range UHF 470-860 Mhz
• Amplifier Gain Max 17db
• Gain Adjustment 15db
• Flatness +1.5db
• Noise Figure 2db
• Output Impedance 75ohms
• Signal Handling 80dbuv#
• Power Supply 10.8-28v DC
• Power Consumption 55ma
• Dimensions 115wx46hx28d (mm)
