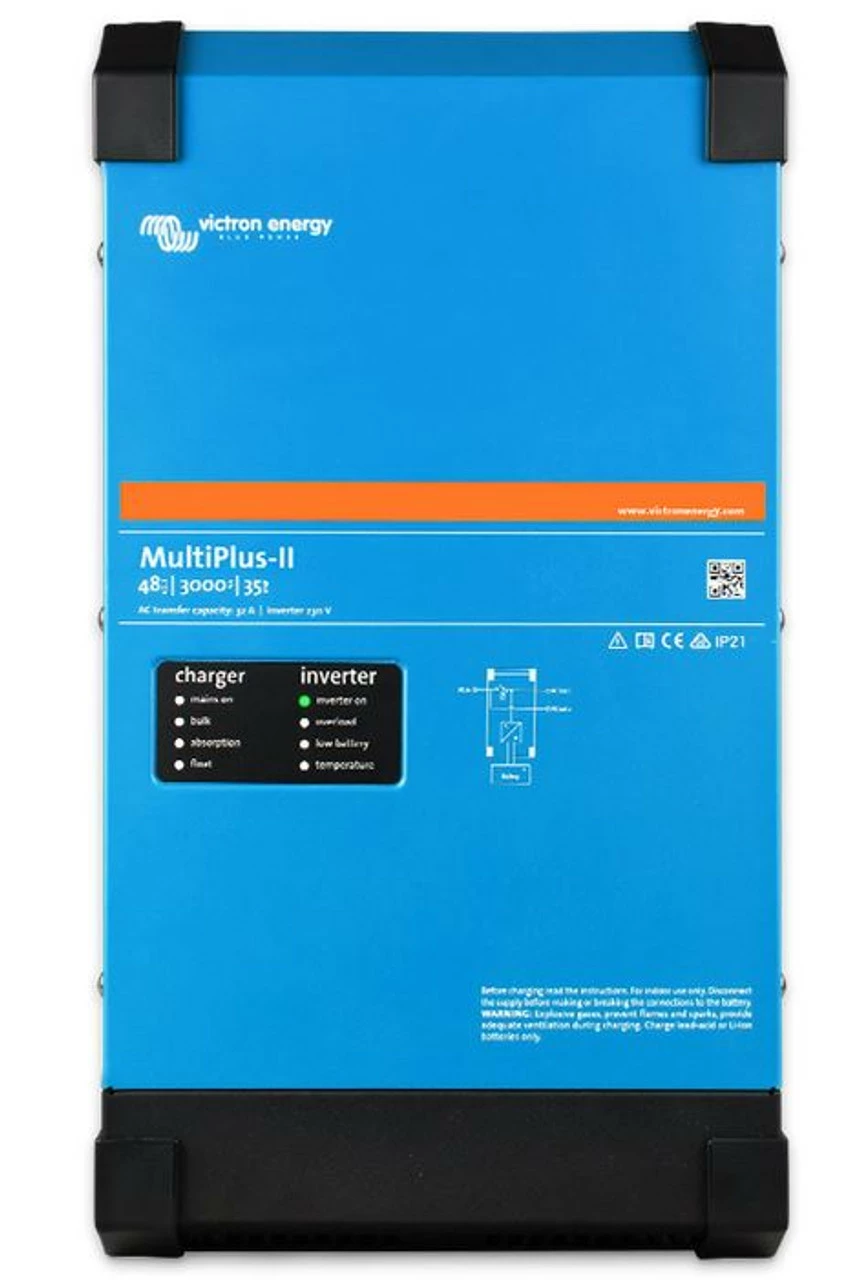

Victron Energy MultiPlus-II 48 Volt Inverter Charger 48/3000/35-32 230V

Combining the features of the MultiPlus and MultiGrid into one device.

The Victron MultiPlus has all the features and functions of the original MultiPlus and the MultiGrid however it also has an external current transformer which brings functions such as PowerControl and PowerAssist.

PowerAssist

The Power Assist within the MultiPlus II prevents a limited AC source from overloading this is done by the battery charging being automatically reduced when an overload would occur. Then power taken from the battery will boost the output of a generator or shore side supply.

ESS: Energy Storage Systems

The MultiPlus is one of many key segments in a the Victron ESS framework, allowing coupling to a MPPT Solar Chargers or Inverters.

UPS Function

Giving you uninterrupted AC power the inverter within the MultiPlus II activates in the event of any grid failures – this is designed to kick in without the end user even noticing within 20 milliseconds) meaning that all connected devices will continue to operate without disconnecting.

Remote Status Checks

The status of the Victron MultiPlus II can be checked on a smartphone, tablet or laptop via Bluetooth Dongle.

All settings of the charger can be configured with the VictronConnect app.

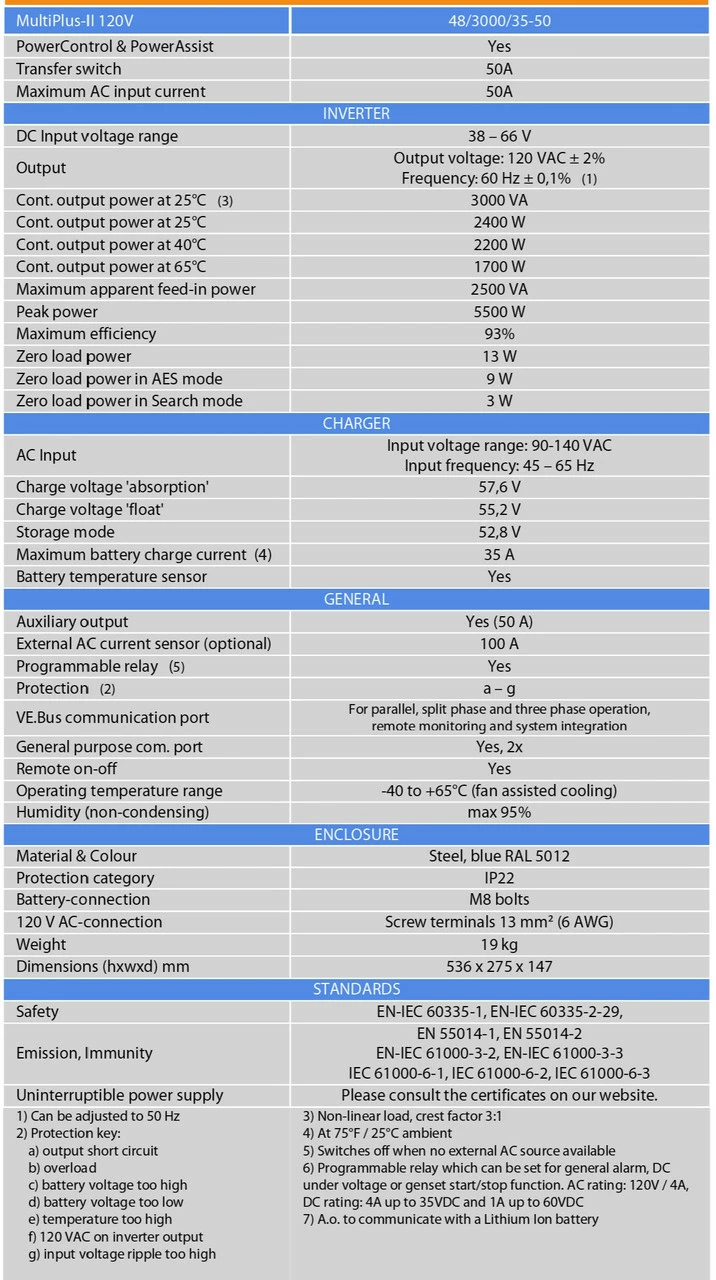

Technical Specifications – 48/3000/35-50 only

GENERAL

• PowerControl & PowerAssist Yes
• Transfer switch 50A
• Maximum AC input current 50A

INVERTER

• DC Input voltage range 38-66 V
• Output voltage 120 VAC + 2%
• Output Frequency 60 Hz+0,1% (1)
• Cont. output power at 25°C 3000 VA
• Cont. output power at 25°C 2400 W
• Cont. output power at 40°C 2200 W
• Cont. output power at 65°C 1700 W
• Maximum apparent feed-in power 2500 VA
• Peak power 5500 W
• Maximum efficiency 93%
• Zero load power 13W
• Zero load power in AES mode 9W
• Zero load power in Search mode 3W

CHARGER

• Input voltage range 90-140 VAC
• AC Input Input frequency 45 – 65 Hz
• Charge voltage ‘absorption’ 57.6V
• Charge voltage ‘float’ 55.2V
• Storage mode 52.8V
• Maximum battery charge current 35A
• Battery temperature sensor Yes
• Auxiliary output Yes (50 A)
• External AC current sensor (optional) 100A
• Programmable relay Yes
• Protection a-g
• VE.Bus communication port For parallel, split phase and three phase operation,remote monitoring and system integration
• General purpose com. port Yes, 2x
• Remote on-off Yes
• Operating temperature range -40 to +65°C (fan assisted cooling)
• Humidity (non-condensing) max 95%

ENCLOSURE

• Material & Colour Steel, blue RAL 5012
• Protection category IP22
• Battery-connection M8 bolts
• 120 V AC-connection Screw terminals 13 mm? (6 AWG)
• Weight 19kg
• Dimensions (hxwxd) mm 536 x 275 x 147

STANDARDS

Safety EN-IEC 60335-1, EN-IEC 60335-2-29,

EN 55014-1, EN 55014-2

Emission, Immunity EN-IEC 61000-3-2, EN-IEC 6 1000-3-3

IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3

Victron Multiplus Manual

Victron Multiplus 48/3000 Datasheet

Technical Specifications:

Material & Colour:

Steel, Blue RAL 5012

Protection Category:

IP22

Battery Connection:

Two M6 bolts

230 V AC-Connection:

Screw Terminals 13mm (6 AWG)

Weight:

18 (KG)

Dimensions (HxWxD):

499 x 268 x 141 mm
