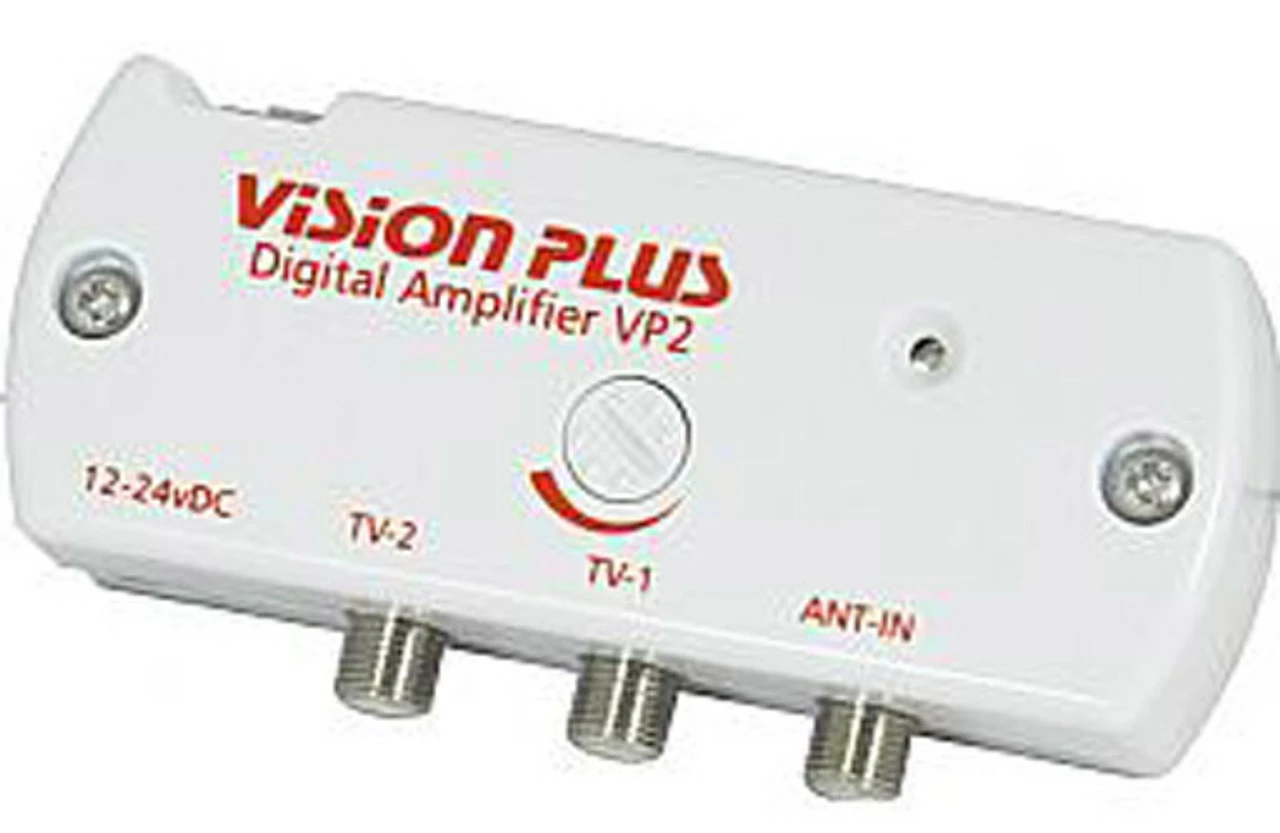

Vision Plus VP2 TV antenna signal booster

The Vision Plus VP2 Digital Aerial Signal Amplifier is a fully wideband booster for television transmissions and is designed to be used with Vision Plus Status antennas with orange logos and don’t have the pullout telescopics.
The Vision Plus VP2 can also be used with the following aerials that only provide a TV output: IMAGE 410, IMAGE 420 IMAGE 440, IMAGE 610 and IMAGE 620.
A smashing little signal amplifier, the VP2 with its high gain and low noise capabilities will provide improved reception when external conditions are poor.

Vision Plus VP2 TV Signal Amplifier Features:

•     Adjustable gain control
•     2 x TV outputs
•     Range UHF 470 to 860 Mhz
•     Amplifier Gain Max 17db
•     Gain Adjustment 15db
•     Noise Figure 2db
•     Output Impedance 75 ohms
•     Power Supply 10.8v to 28v DC
•     Power Usage 55ma
•     Dimensions 115wx46hx28d (mm)

Caution

The Vision Plus VP2 is for use with Vision Plus STATUS aerials that have orange logos and do not have telescopics. It can also be used with IMAGE 410/420/440/610/620 antennas, the VP2 only provides a TV output.
