PV Logic 100w Motorhome Caravan Camper Solar Panel Kit Complete

High efficiency 100W solar panel kit, perfect for off-grid campers

The PV Logic 100 watt Solar Panel kit is ideal for use on large sized caravans and motorhomes where the power is used to run the lights, water pump, television, laptop computer etc throughout the year or for extended touring periods. This kit comes complete with universal alloy L brackets, making it easy to install this solar panel kit to campervans and campers. The ever-popular 100W solar kit is capable of supplying up to 650wh a day, allowing it to charge even large leisure batteries.

Optional MPPT Pro charge controller upgrade available

Both the standard and pro charge controllers can charge two 12v or 24v batteries, but the MPPT Pro charge controller offers up to 20% increased solar yields by modifying the panel’s voltage to match the batteries’ requirements. This allows it to provide better battery charging performance. The MPPT charger also features an Android/Apple smartphone app, allowing you to monitor your solar panel’s performance over Bluetooth. Both the standard and MPPT charge controller feature a two-year warranty.

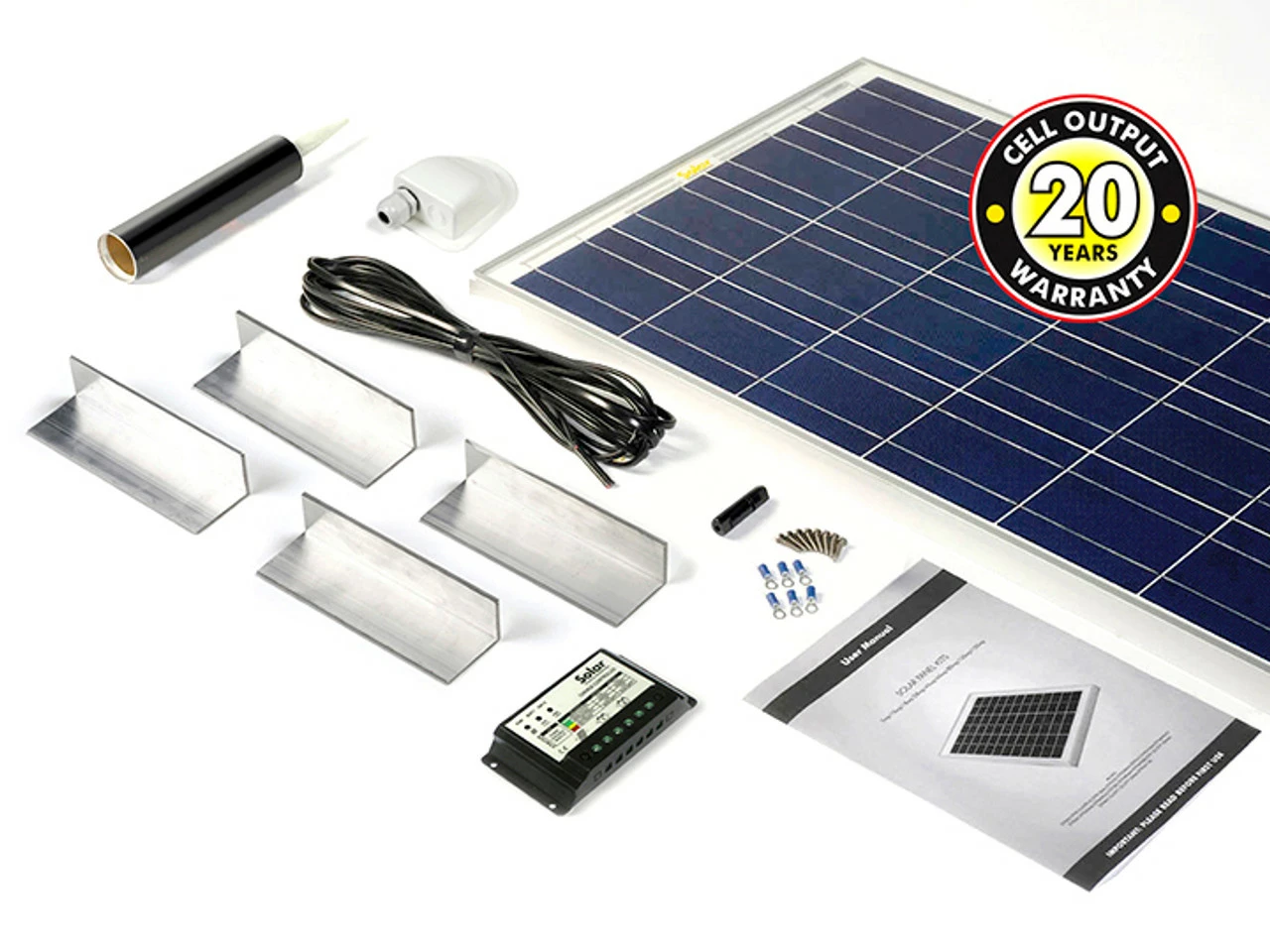

What’s in the box?

The kit comprises:

• 1 x STP100 100 watt solar panel
• 1 x STCC10 10 amp solar charge controller (Optional MPPT 15 amp smart charge controller also available)
• 1 x 4 meter cable bundle
• 1 x FKA08 Standard bracket kit
• 1 x STMP006 Cable Feed Gland
• 1 x tube of bonding agent
• 1 x Pack of fuses, ring terminals etc.
• 1 x Fitting instructions

PV Logic 100W Solar Panel Kit Features:

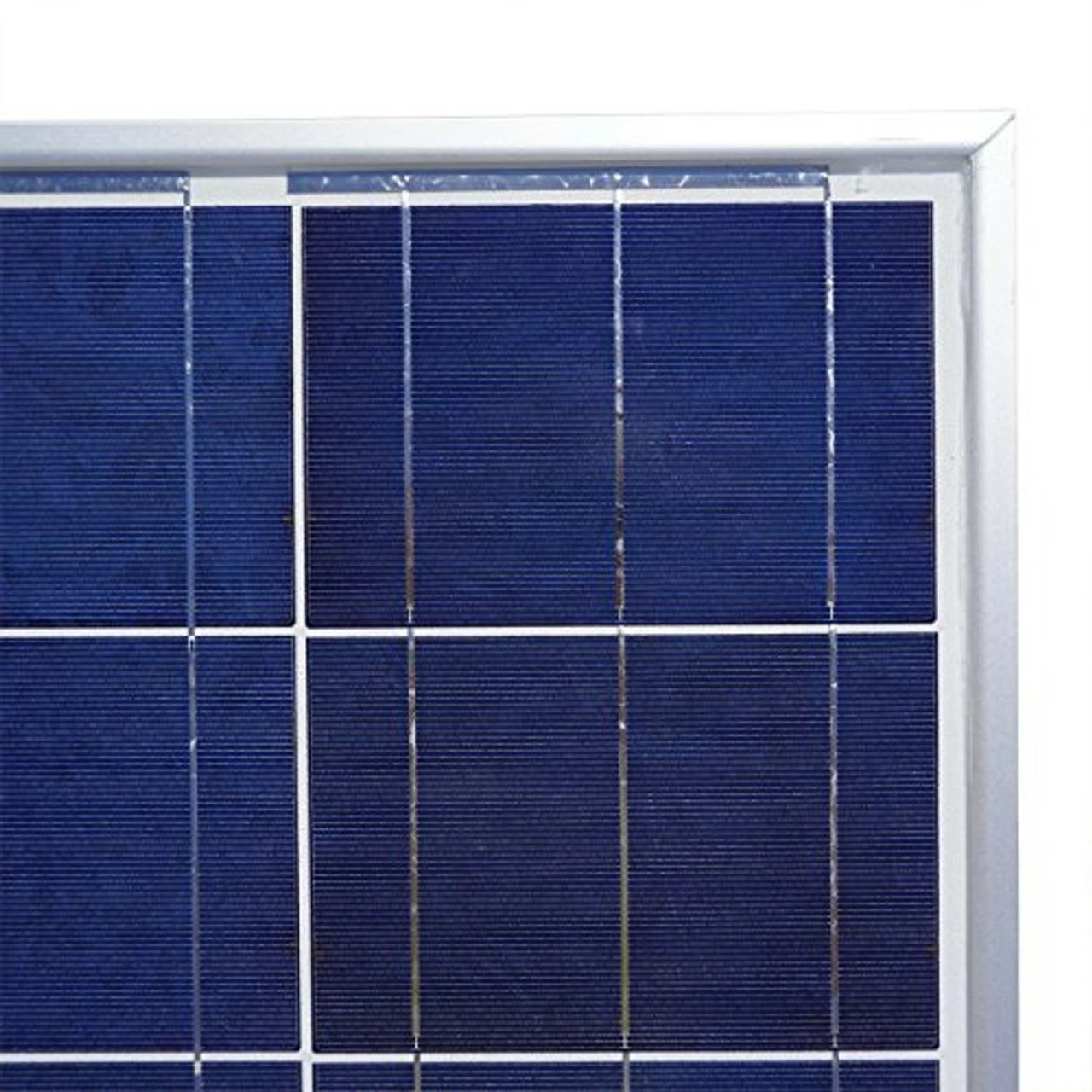

• High-efficiency crystalline solar cells for all-weather charging
• Built-in diodes prevent battery discharge
• Tough, robust construction
• Water resistant for outdoor use
• 20 year cell performance warranty
• 10 year module warranty

Technical Specifications:

Height:

1005 mm

Width:

670 mm

Depth:

35 mm

Power (WP):

100 Watts

Nominal voltage (VMP):

19.5v DC

Open circuit voltage:

23v

Weight:

8 kg

Approx. Watt Hours per day:

600

Approx. Amp Hours per day:

30.72 A
